Tubi-Levator: the vacuum lifter even for highly porous materials

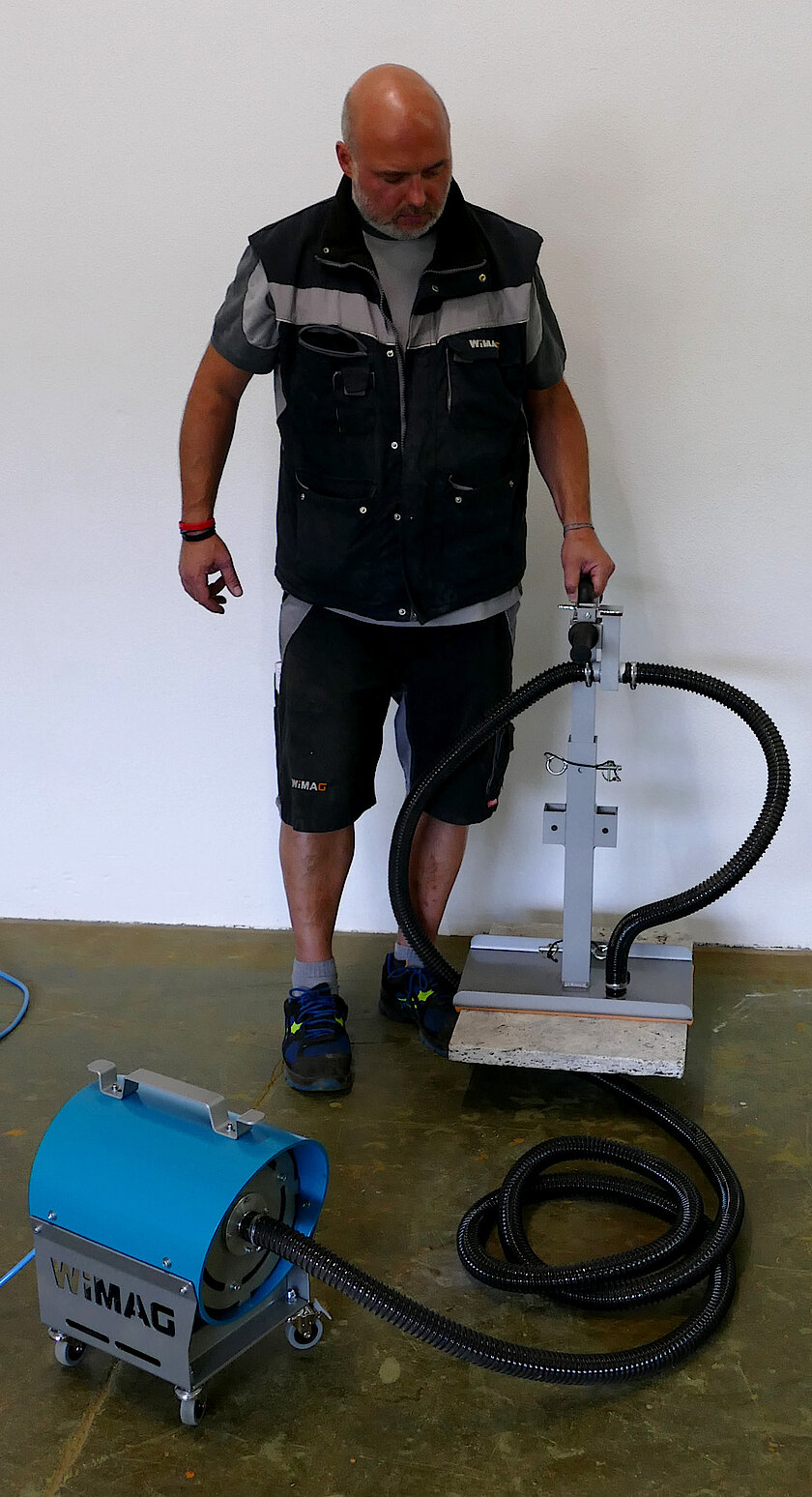

All even/rough and porous plates/stones can be easily lifted, transported and laid with the Tubi-Levator. Immediately after positioning, the Levator sucks itself in. The Levator only releases the slab again when you want it to: a valve is opened for this purpose.

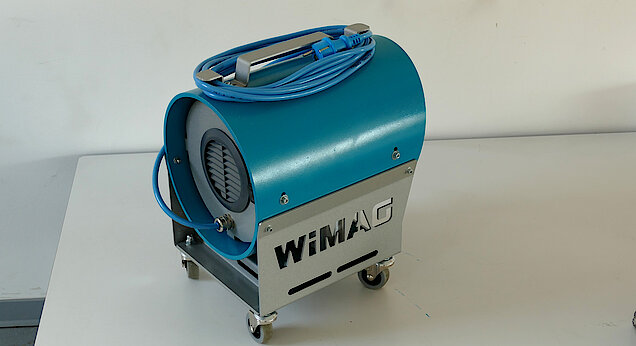

Technology: the Tubi-Levator consists of a mobile housing with a suction turbine. The suction turbine generates the vacuum and is connected to the desired suction plate with the suction hose. The vacuum chamber of the suction plate is sealed by an elastic rubber. The sealing is self-adhesive and can be easily replaced.
Basic unit: the Tubi-Levator is connected to the power supply with a 5 m power cable. The basic appliance is supplied with a 5 m suction hose.

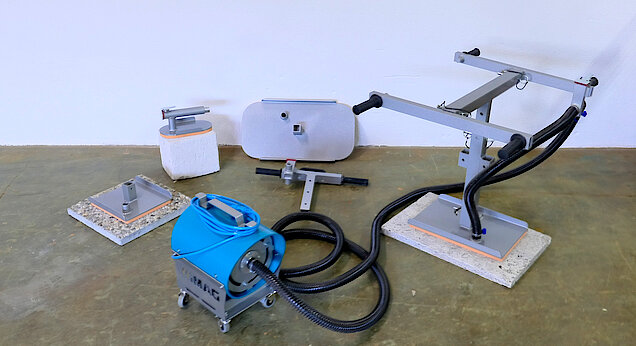

Accessories: The basic unit can be equipped with a manual lifter, a single carrier or a double carrier for two-man operation. The two-carrier can be adjusted in height from 500 to 700 mm and in width from 850 to 1,250 mm.
Suction plates are available in various sizes depending on the required load capacity. Special versions on request.
