Customised Solutions from WIMAG

Our special designs of construction and lifting equipment, e.g.: cranes and vacuum lifters offer flexible and individual solutions.

High-quality products tailored entirely to your requirements can only be developed by using state-of-the-art technologies. This is particularly important for systems that are individually designed according to customer requirements. Complicated tasks particularly stimulate the creativity of our engineers.

Special designs developed and manufactured at the customer's request:

112604 Pipe Grab RG 6.5 with 112604.1 Cantilever KA 6.5 for transporting concrete pipes | Load capacity 6,500 kg | Pipe diameter 1,500-2,500 mm

330975 Plate Clamp PZ 1.2-1.8 for automatic forklift transport of plates | Load capacity 120 kg | Plate width 1,800 mm

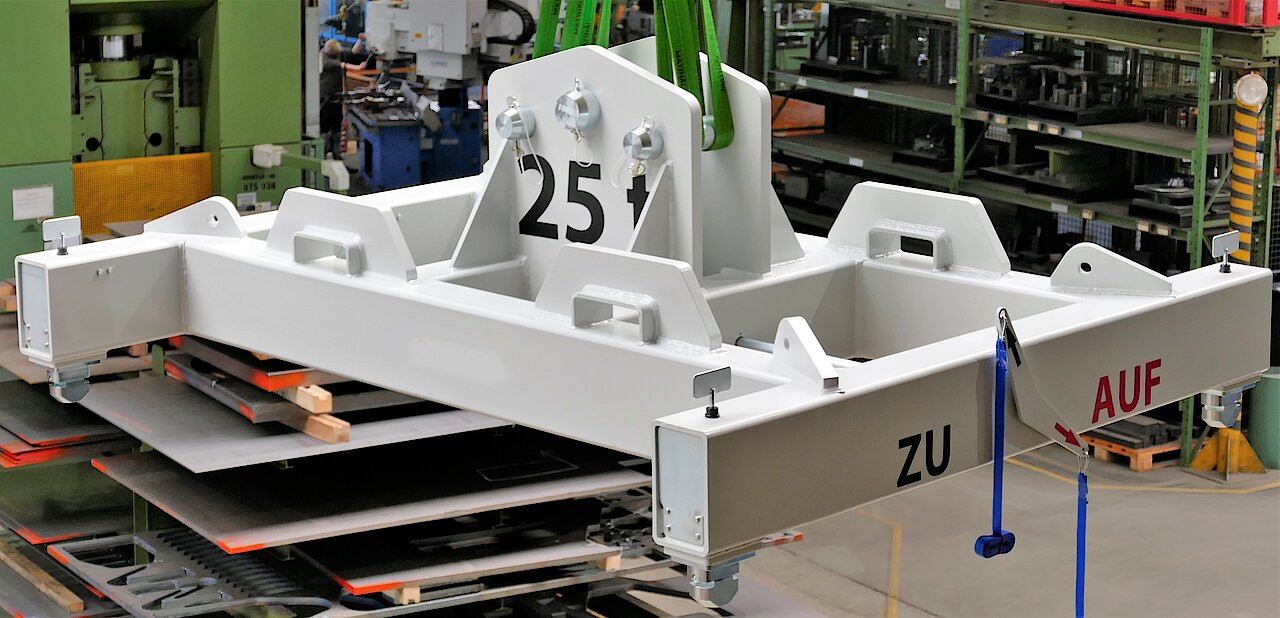

407756 Container Spreader CT25-2,3-1,8 | Load capacity 25,000 kg | Working length 2,260 mm | Working width 1,775 mm | Locking with twist locks

819053 Turbo H600 with swivel system | Load capacity 150 kg

819901 Turbo H-Levator with 6 suction plates carrying capacity 100 kg

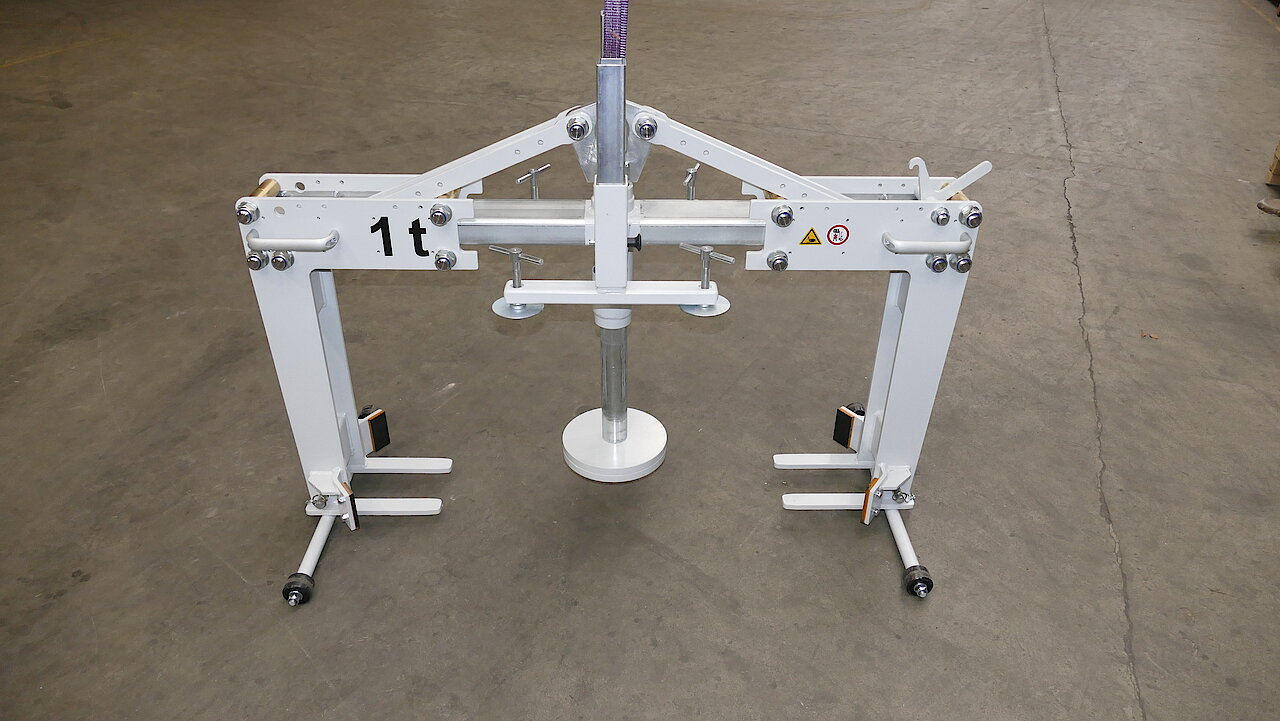

330928 2-Arm Parallel Gripper PG 2-1-70 with 2 parallel guided gripping arms for gripping under the load (of the load capacity 1,000 kg) | Clamping diameter 700 mm

407231 Balancer BC 8-5 with hydraulically adjustable suspension eye | Battery operation | Radio remote control | Load capacity 8,000 kg | Working width max 5,000 mm

407855 Turning Beam DT-HY 2,6-3 for turning concrete parts | Load capacity 2.600 kg | Working width 3.000 mm

823501 Gamma V-Levator | Vacuum lifter for tilting panels | Load capacity 500 kg

330959 Carton Gripper KG 25-70 | Special design for gripping 3x2 cartons with automatic switch | Load capacity 250 kg

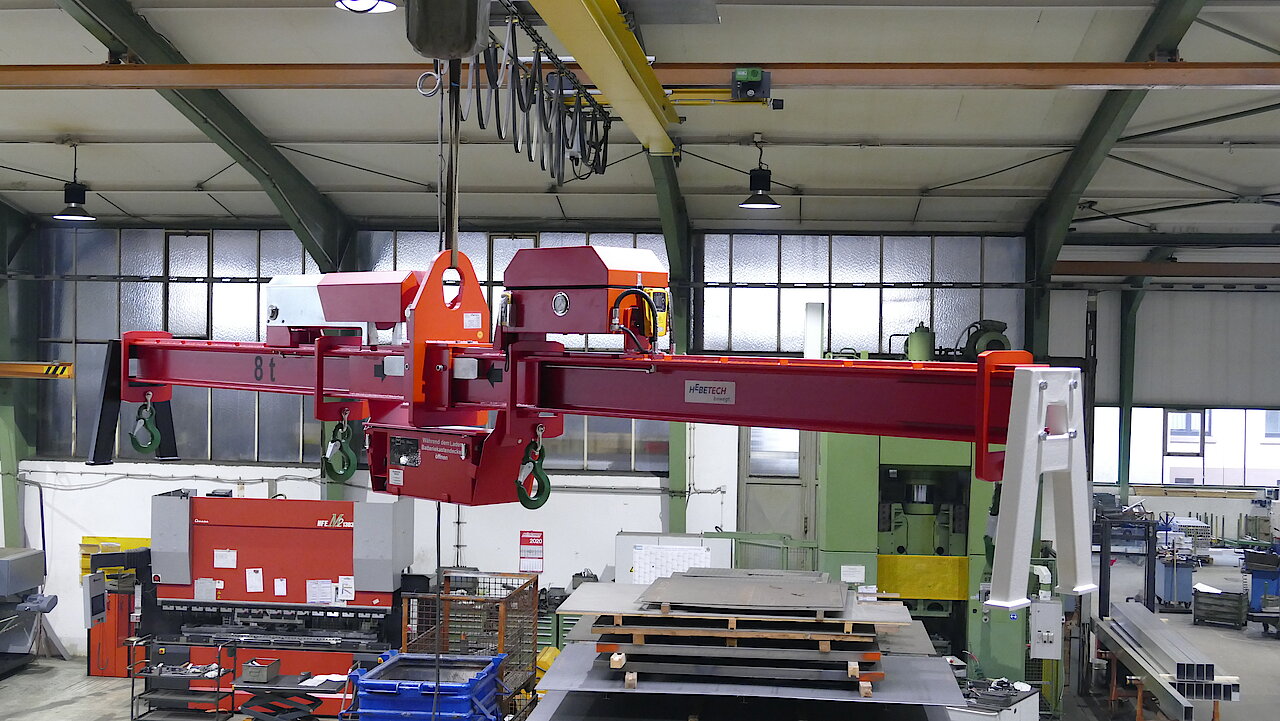

407626 Frame Traverse RT 8-8-2,4 | Suspension eye electrically movable in longitudinal and transverse direction | Load capacity 8,000 kg | Working length 8,000 mm | Working width 2,400 mm

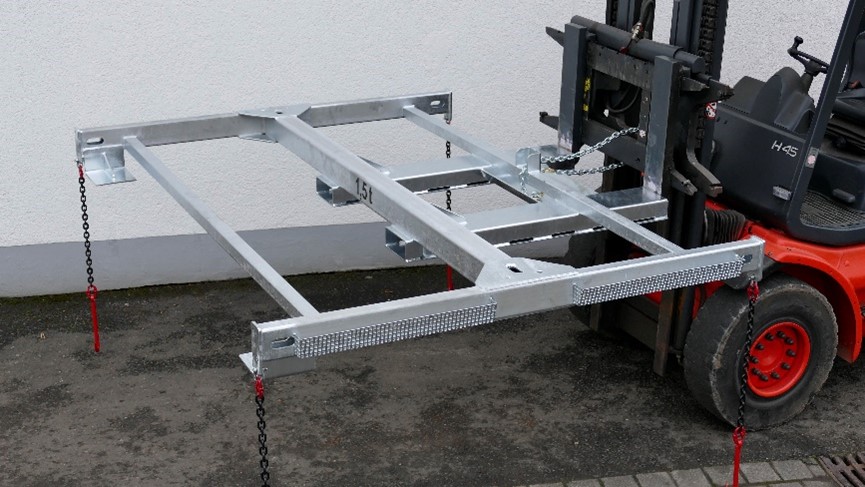

407859 Stacker Traverse ST 1.5-2.7-2 for handling construction steel mesh | Load capacity 1,500 kg | Working length 2,700 mm | Working width 2,050 mm.

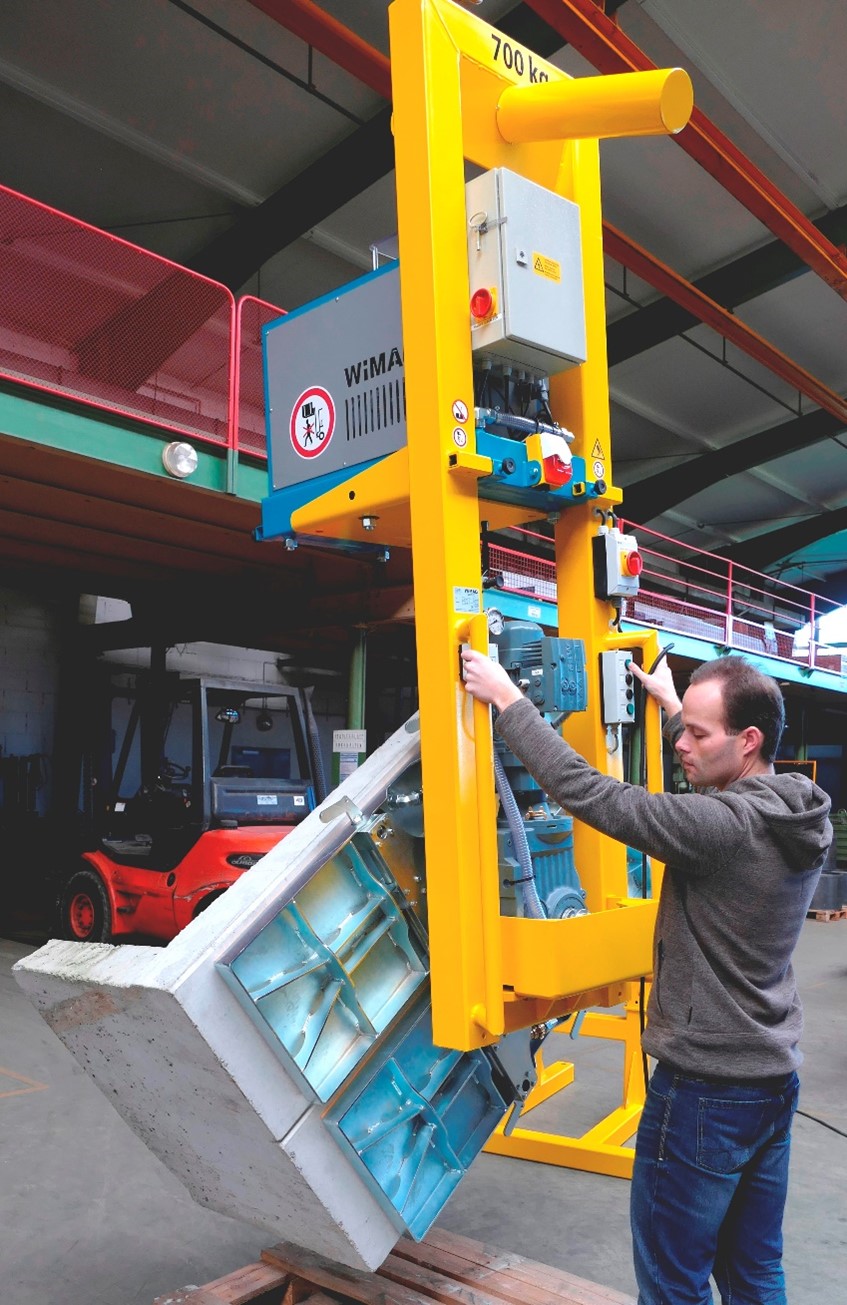

860210 Vacuum Turning Device DV700 for turning L-stones | Load capacity 700 kg
